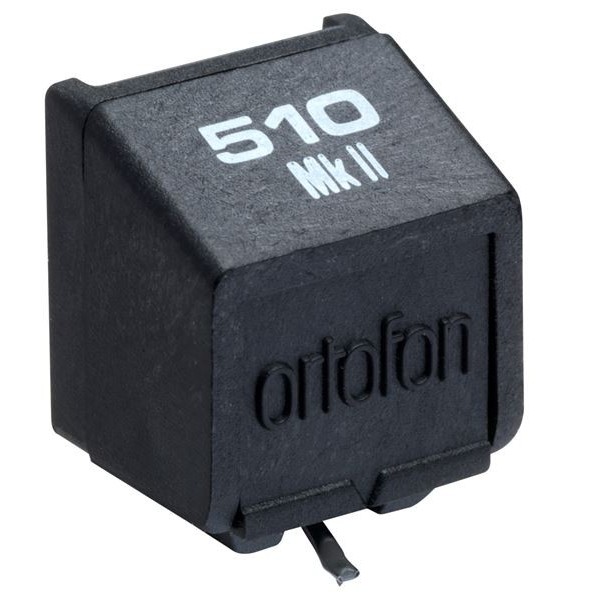

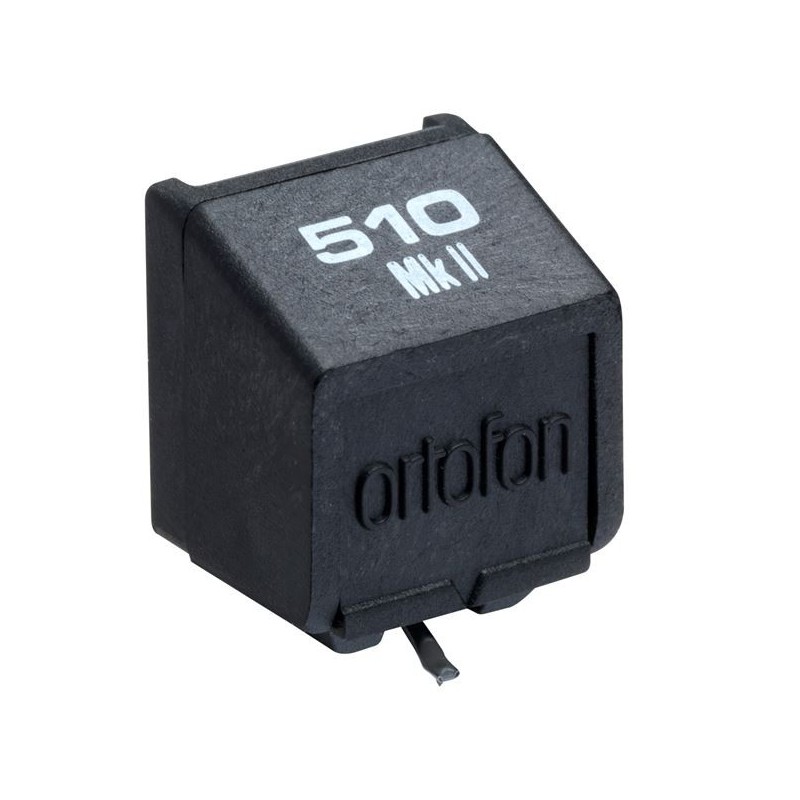

Ortofon STYLUS 510 mkII
- Donnez votre avis
99,00 CHF
TTC
Stock fournisseur - habituellement 5 à 7 jours
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
SPÉCIFICATIONS TECHNIQUES :
Frequency response - 20-23.000 Hz
Tracking ability at 315Hz at recommended tracking force *) - 70 µm
Compliance, dynamic, lateral - 25 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
*) Typical value
Equivalent stylus tip mass - 0,3 mg
Tracking force range - 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended - 1,5 g (15 mN)
Tracking angle - 20°
Stylus colour - Black
Recommended for Series 500 Mkll, 510, 510 P
55668
Fiche technique
- Fonctionnalités
- Cellule compatible
- 510
510 P
Series 500 mkII
Références spécifiques
- UPC
- 55668
