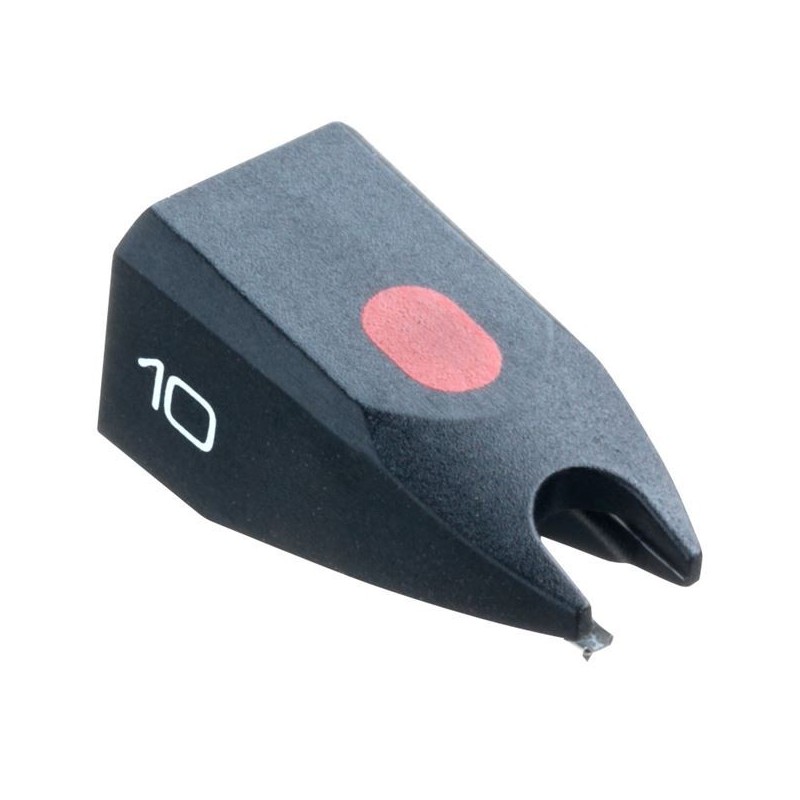

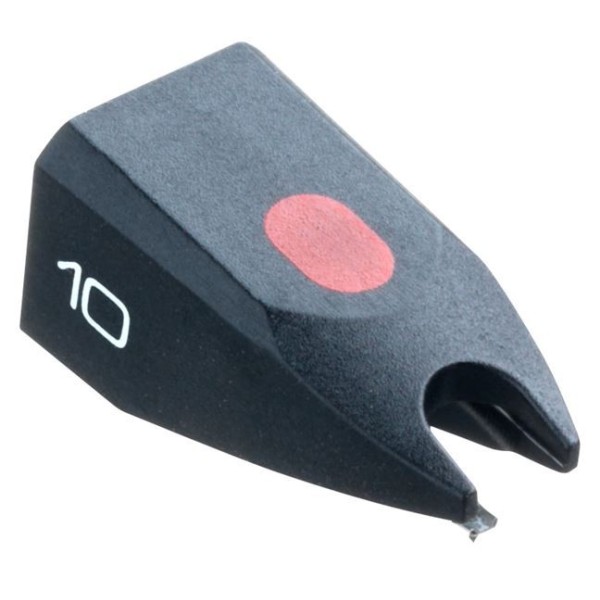

Ortofon STYLUS 10
- Donnez votre avis
69,00 CHF
TTC
Stock fournisseur - habituellement 5 à 7 jours
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
SPÉCIFICATIONS TECHNIQUES :
Frequency range: 20-24.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force*): 70 µm
Compliance, dynamic, lateral: 25 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
*) Typical value
Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Stylus colour: Black
Recommended for following cartridges: Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, LMA 12
Frequency range: 20-24.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force*): 70 µm
Compliance, dynamic, lateral: 25 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
*) Typical value
Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Stylus colour: Black
Recommended for following cartridges: Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, LMA 12
55571
Fiche technique
- Fonctionnalités
- Cellule compatible
- Concorde 10
Concorde EC 10
Concorde STD
LM 10
LMA 12
LMB 12
OM 10
OMBulk 10
OMP-mount 10
OMT 10
SMB 12
Super OM 10
TM 10H
Références spécifiques
- UPC
- 55571
