Cyrus Audio Phono Signature

SPECIFICATIONS TECHNIQUES

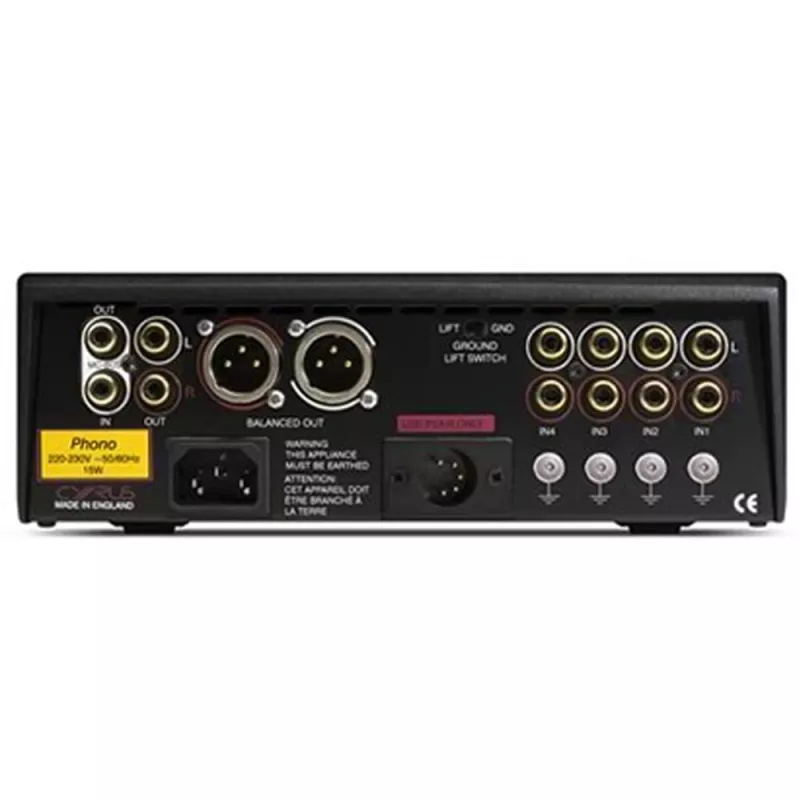

INPUTS

• Analogue RCA Phono 4 pairs

OUTPUTS

• Analogue RCA 1 pair
• XLR Balanced 1 pair
• PSX-R Upgrade Port Yes
• MC-BUS Yes

DIMENSIONS (MM)

• Height 73
• Width 215
• Depth 360
• Weight (kg) 4.1

VUE D'ENSEMBLE

The purity of the tiny signal produced from the stylus is preserved throughout the amplification journey, through a deep understanding of circuit design and our relentless pursuit of perfection.

Music produced from a well calibrated turntable, good stylus and the Cyrus Phono Signature is surely one of the finest experiences in audio.

PHONO SIGNATURE DESIGN

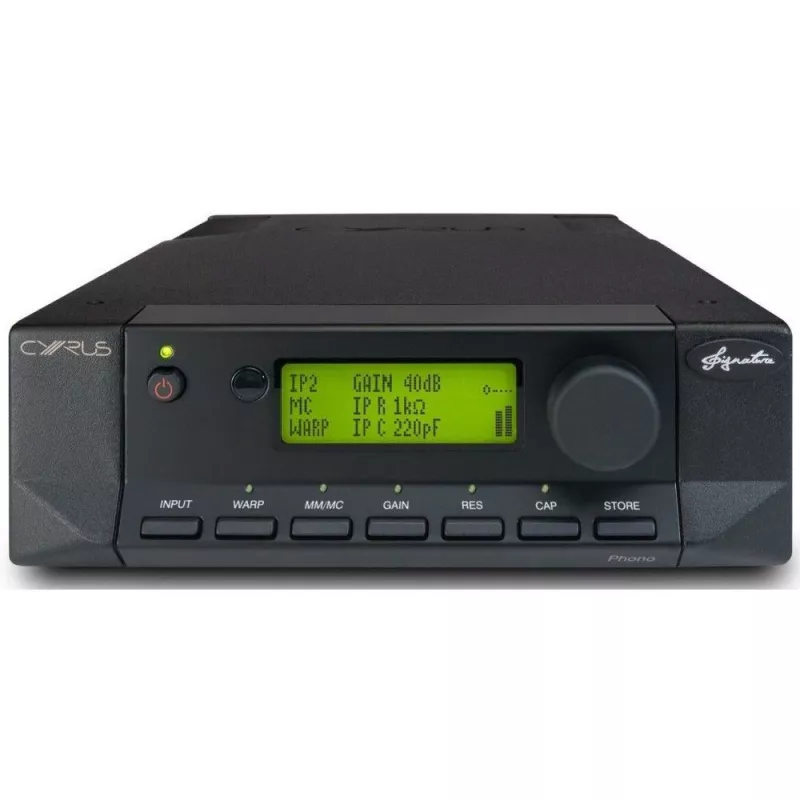

Phono Signature has been designed to allow up to four turntables to be permanently connected because many vinyl enthusiasts enjoy multiple turntables, arms or cartridges for different records. It is also possible to calibrate each input separately from the comfort of your armchair.

Each of the four inputs can be accurately matched to the exact specification of the cartridge and the acoustic preference of the user. Adjustment is provided for MC cartridges in; gain, resistance and capacitance. In addition, a switchable warp filter is provided to maximise amplifier performance.
