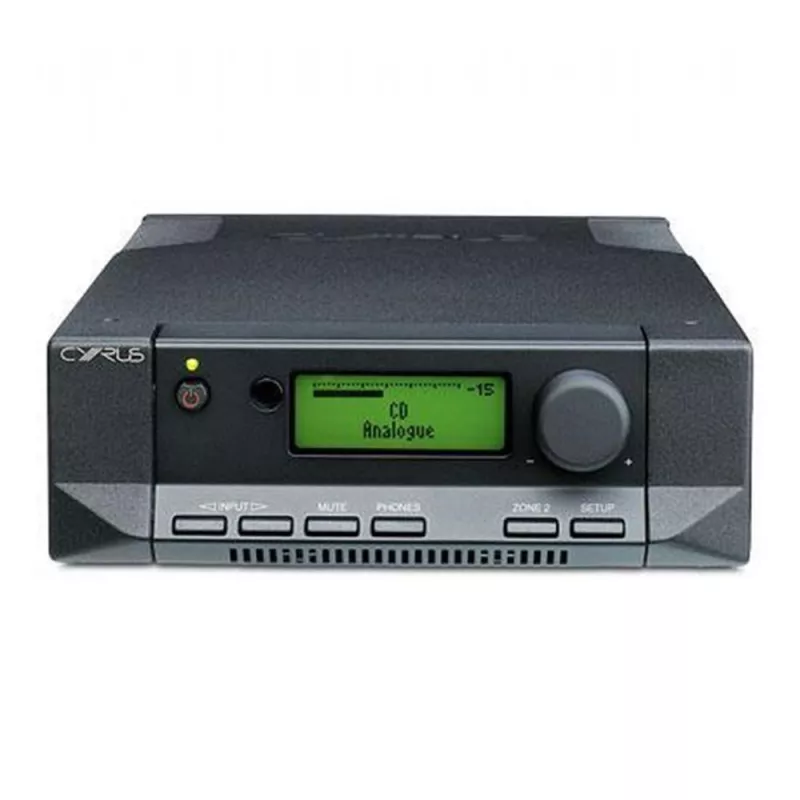

Cyrus Audio 8_2 QX DAC

SPECIFICATIONS TECHNIQUES

OUTPUTS

• Stereo RCA analogue 1 pair fixed, 2 pairs variable
• BFA speaker Yes
• Headphones Yes
• PSX-R upgrade port Yes
• MC-BUS Yes

FILE/SIGNAL COMPATIBILITY

• 24/192 resolution through optical/coaxial inputs,
• 16/48 through USB

INPUTS

• Optical SPDIF 2
• Coaxial SPDIF 2
• USB B 1
• Analogue RCA Phono 6 pairs

POWER OUTPUT

• Watts into 6 Ohms 88

DIMENSIONS (MM)

• Height 73
• Width 215
• Depth 360
• Weight (kg) 6.9

VUE D'ENSEMBLE

With a complete set of digital and analogue inputs, you can connect virtually any source and output directly to your speakers. The powerful amplifier has an instantly impressive grip on even large loudspeakers. Through carefully tuned components and our unique circuit layout, the 82 DAC provides a clear window on recordings, revealing layers of detail and complexity in the music that lesser amplifiers simply cant achieve.

DESIGN PHILOSOPHY

The 82 DAC and its sibling the 6 DAC are conceived to be the hubs to your entire audio system. The aim was usability, simplicity and refinement. Supplied with the full iR14 remote control unit, its possible to connect almost every analogue and digital source through this highly competent unit.

The bi-wire output of the 82 DAC gives a full 88 Watts into 6 ohms enough to drive even the most demanding loudspeaker loads. To ensure the highest standards of quality, the power supply is a high current design that uses two transformers to completely separate the digital control stages from the sensitive audio signals an approach usually reserved for pre/power combination amplifiers.

The 82 DAC features a high performance 24/192 DAC with optical and coaxial inputs and a driver less USB connection for plug and play connectivity to a PC or laptop. Upgrade to Qx specification for the 32bit upsampling DAC design used in the DAC XP Signature.
