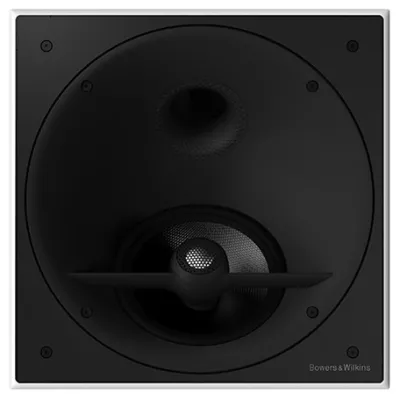

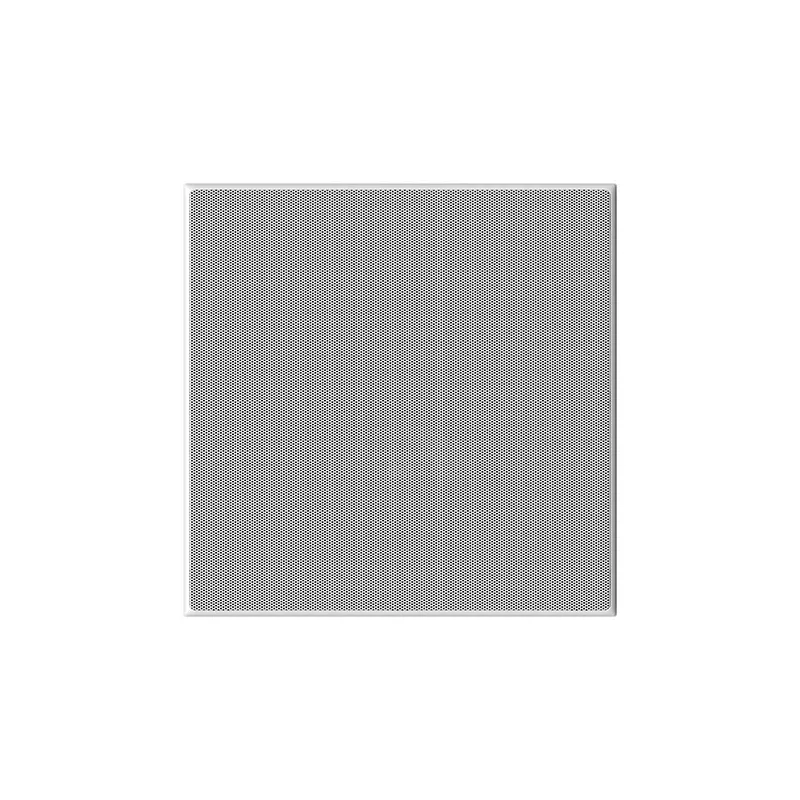

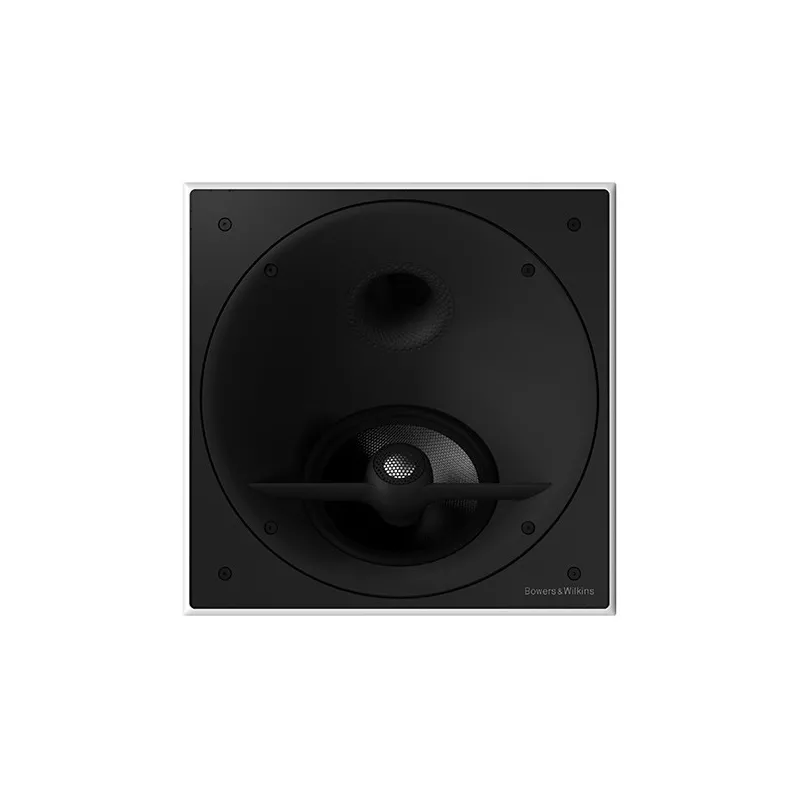

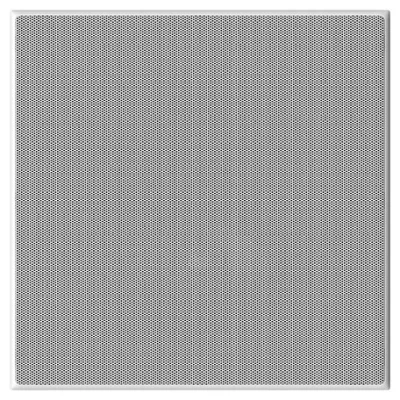

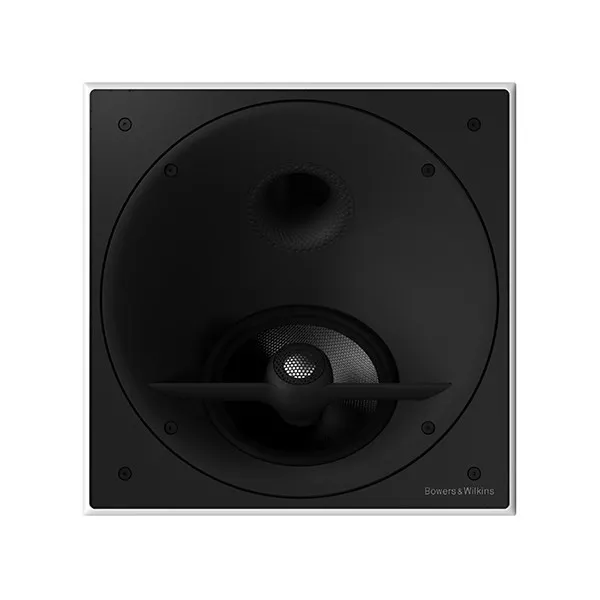

Bowers & Wilkins CCM8.5D
- Donnez votre avis
2 500,00 CHF
TTC
Stock fournisseur - habituellement 5 à 7 jours
CCM8.5 D is a two-way in-ceiling speaker.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
SPÉCIFICATIONS TECHNIQUES :
| Model | CCM8.5 D |
| Description | 2-way in-ceiling loudspeaker |
| Technical features | Aluminium Tweeter ‘wing’ Rotatable aluminium mini-baffle allows ‘toe-in’ Diamond Dome, Nautilus™ tube-loaded tweeter Anti-resonance plug Flowport™ |
| Drive units | 1x ø25mm (1in) Diamond Dome, Nautilus™ tube-loaded tweeter 1x ø180mm (7in) Continuum cone bass/ midrange driver with anti-resonance plug |
| Frequency range (-6dB) | 35Hz - 35kHz |
| Recommended Amplifier Power | 120W |
| Sensitivity | 88dB |
| Nominal Impedance | 8Ω |
| Frame (width/height) | 351mm (13.8in) |
| Cut-out (width/height) | 331mm (13in) |
| Protrusion | 8mm (0.3in) |
| Net weight | 5kg |
| Back Box | BB CCM8.5 |
VUE D'ENSEMBLE
CCM8.5 D is engineered to deliver high-performance sound from a relatively compact ceiling-mounted loudspeaker. It features a decoupled Diamond dome 25mm (1 inch) tweeter and a single 180mm (7-inch) bass/mid Continuum driver.
The most accurate high-frequency drive unit available, the exceptionally stiff and light Diamond diaphragm ensures pure, distortion-free treble. CCM8.5 D also includes a dark Continuum bass/mid driver for pristine midrange and low end sound. Both drivers are located in a continuously rotatable mini-baffle which allows the user to ‘toe in’ the drivers for the best performance.
CCM8.5 D’s back box is fully Matrix™ braced, for extra rigidity and improved performance. The back box also includes bi-wirable cables that are guided to the terminal panel through tubes and connect to the baffle with a multi-pin connector. CCM8.5 D has also been developed to fit into existing back boxes enabling customers who purchased the original CCM8.5 to easily upgrade.
59610
Fiche technique
- Couleur
- Blanc
- Type de produit
- Enceinte encastrable
- Backbox associé
- BB CCM8.5
- Type d'installation
- Installation plafond
Références spécifiques
- UPC
- 59610
- EAN-13
- 0714346327904
