Bose Pro CONTROLSPACE CC-16
- Donnez votre avis
405,00 CHF
353,23 CHF
Économisez 51,77 CHF
TTC
Stock fournisseur - habituellement 5 à 7 jours

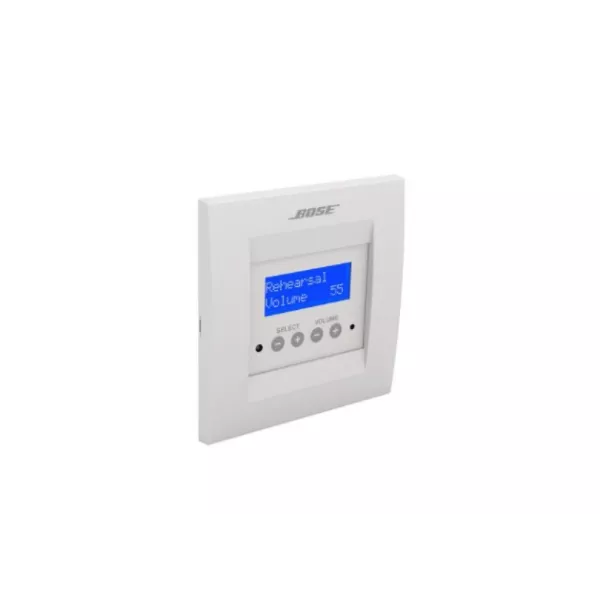

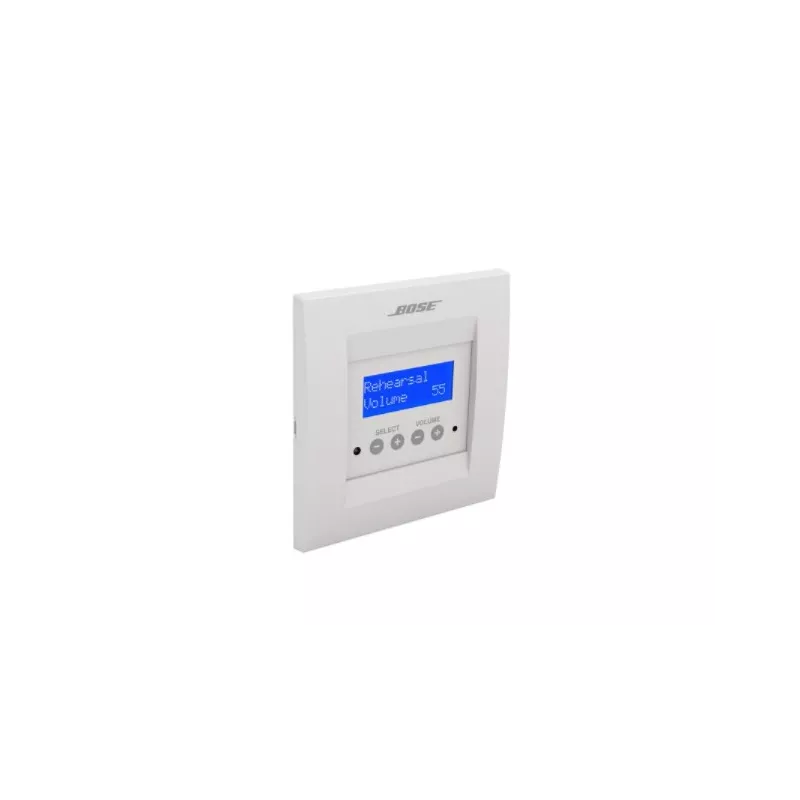

The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.
Technical Specifications
Connectors
Fixed 6-position terminal connector for power (Vin+, GND) and RS-485 (A, B)
Maximum Cable Length
2000' (609 m), twisted pair, daisy-chain wired configuration
Maximum Number of Units Per System
15 per ControlSpace ESP processor
Power Supply Requirement
8 - 18 VDC, 100 mA
Features
Elegant styling with intuitive controls for end user operation
122 x 32 pixel backlit blue LCD
Sealed VOLUME +/- and SELECT +/- pushbuttons
Simplified drag-and-drop setup using ControlSpace® Designer™
DIP switch addressing on back of unit
Programmable control of system elements (switching of audio sources, system configurations)
Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
Customizable on-screen wording provides easier system operation
Programmable software lock out
Fits into a standard 2-gang electrical wall box
58735
Fiche technique
- Type de produit
- Contrôleur de zone
Références spécifiques
- UPC
- 58735
- EAN-13
- 0017817406222
