Bose Pro FREESPACE DXA 2120
- Donnez votre avis
1 789,00 CHF
TTC
Stock fournisseur - habituellement 5 à 7 jours

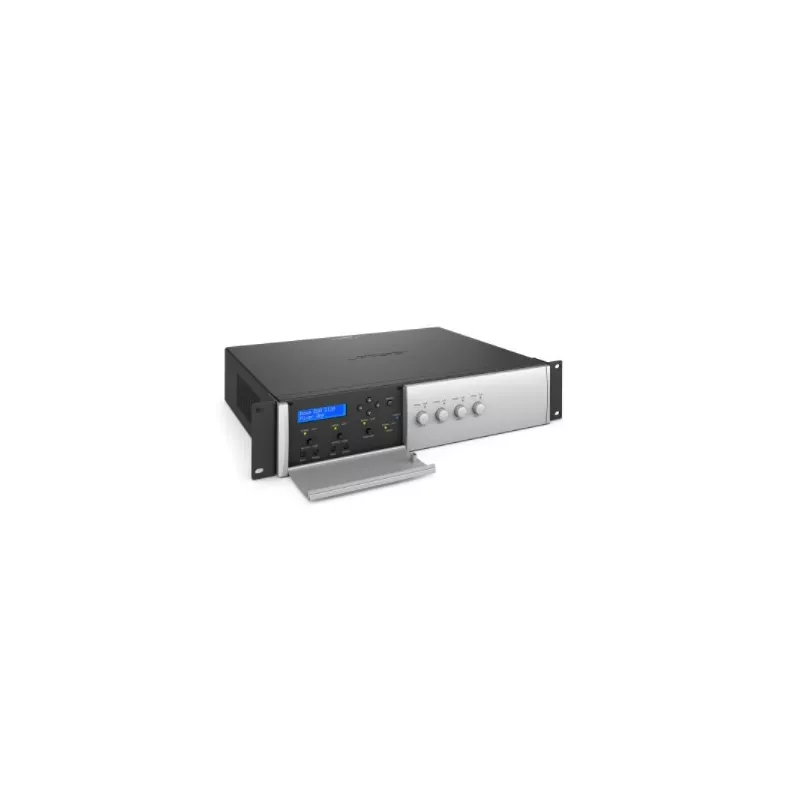

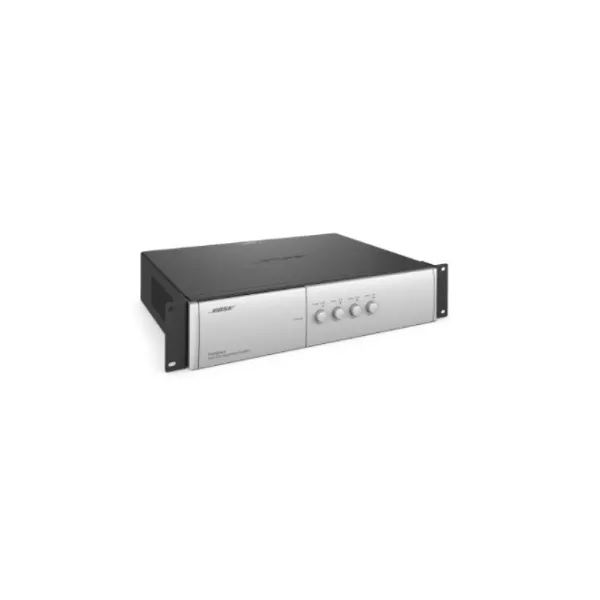

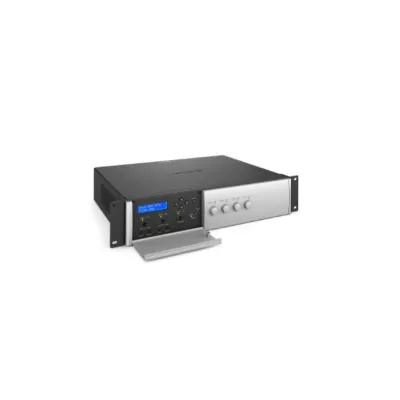

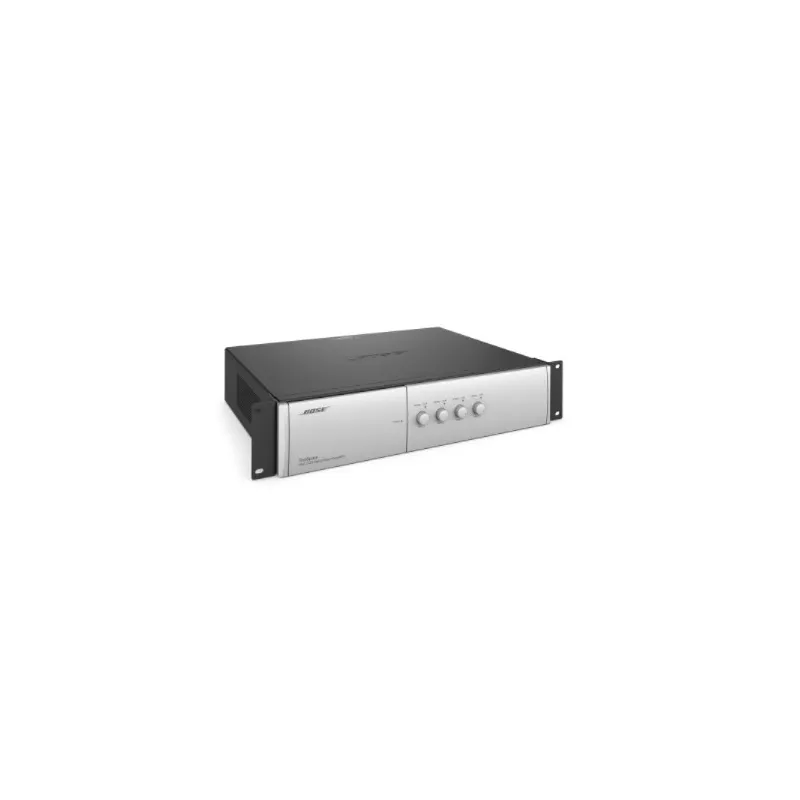

The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging and two-channel amplification for installed applications. It offers three versatile operating modes and is easily configured using the controls on the front panel. No external computer is required.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging and two-channel amplification for installed applications. It offers three versatile operating modes and is easily configured using the controls on the front panel. No external computer is required.
FEATURES
Six inputs: four mic/line inputs with choice of balanced Euroblock or unbalanced RCA connectors, one page input and one direct input
Two powered outputs that can operate at high or low impedance: 2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V
Three operating modes for greater flexibility in installed music or speech applications: Mixer Mode, Dual Mono Select Mode, and Stereo Select Mode
Easy setup and control via onboard controls – no computer needed
DSP includes loudspeaker EQs and dynamic EQ functions engineered specifically for Bose loudspeakers
Opti-voice® paging provides a smooth transition between music and announcements
24-volt DC backup power connection for added reliability and integration onto fire and evacuation systems
Applications
- Conference centers
- Retail stores
- Restaurants and bars
- Hotels
- Lobbies and conference rooms
SPECS
Technical Summary
Amplifier Power
2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V
Signal-to-Noise Ratio
75 dB (below rated power, A-weighted)
THD
≤0.5 % (at full rated power)
Dynamic Range
80 dB
Output Channels
2 channels
Input Channels
Mic/Line Inputs: 4 balanced
Line Inputs: 4 unbalanced
Page Inputs: 1 balanced
Direct Inputs: 1 balanced
Mechanical Diagrams

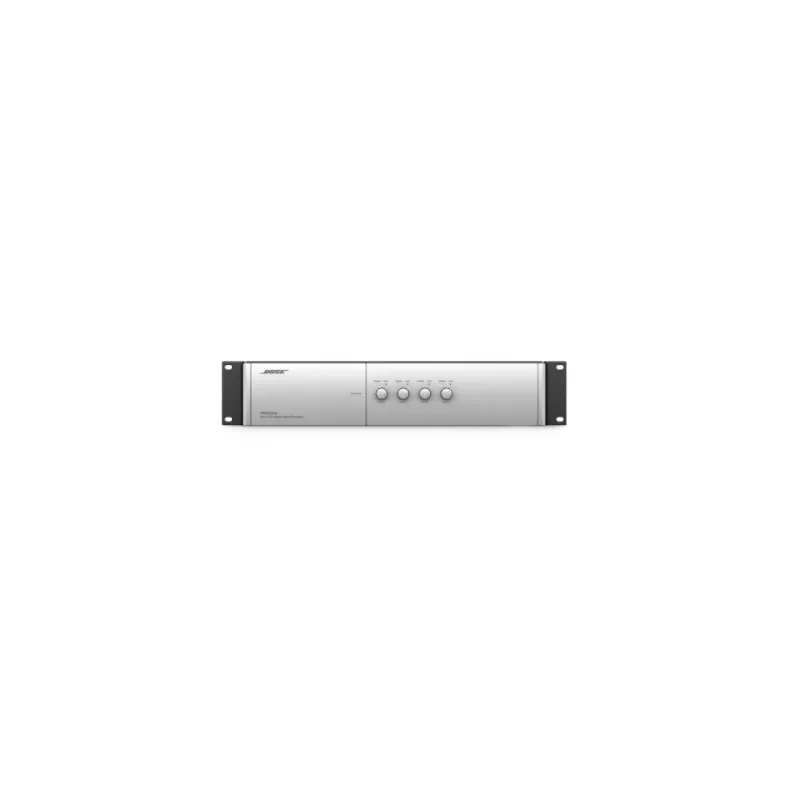

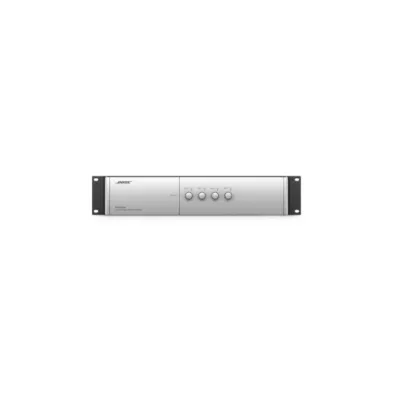

Front View

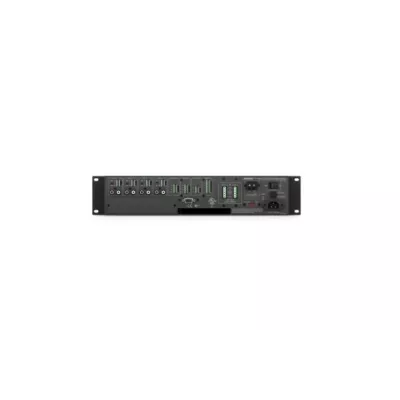

Back View
Right View
57852
Fiche technique
- Type de produit
- Amplificateur/Mélangeur
- Nombre de canaux
- 2
Références spécifiques
- UPC
- 57852
- EAN-13
- 0017817397124
