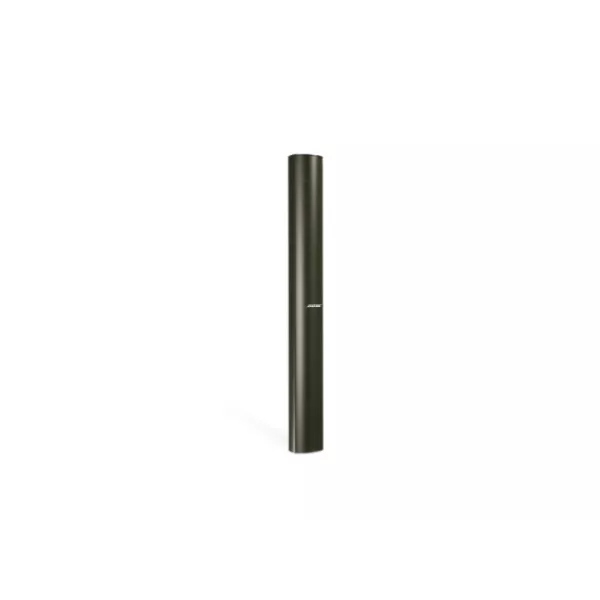

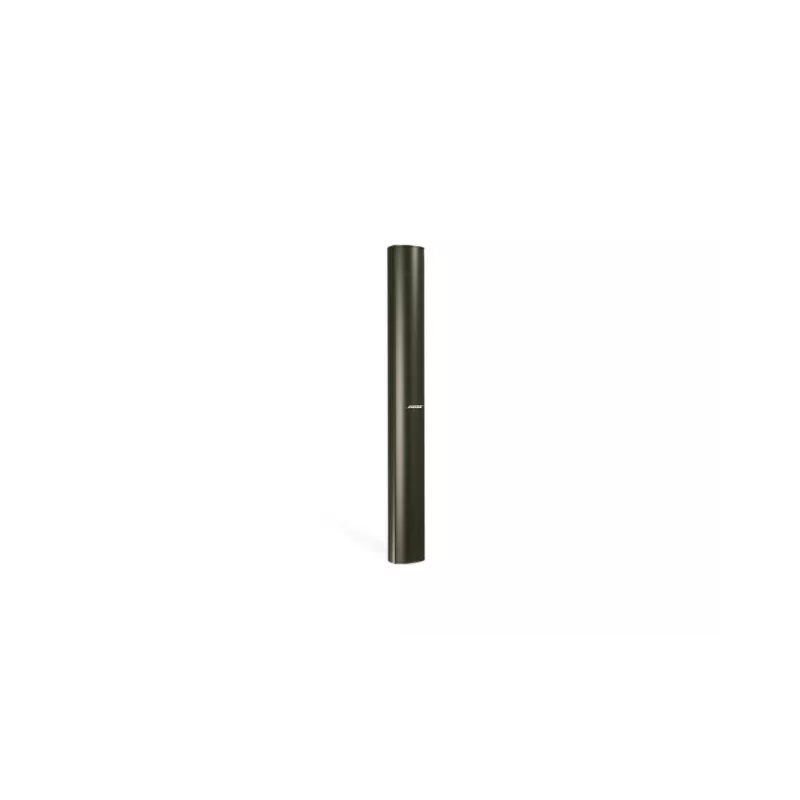

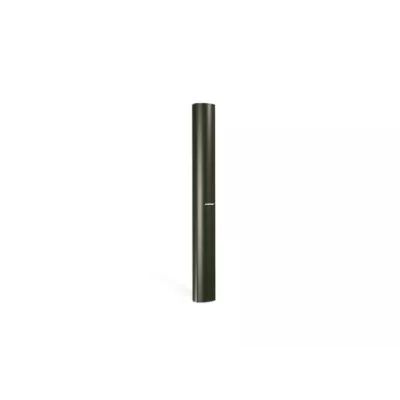

Bose Pro PANARAY MA12

959,13 CHF
TTC Stock fournisseur - habituellement 5 à 7 jours

Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

Couleur : Noir
Modèle : 8 Ohms
Quantité
Add to wishlist
Stock fournisseur

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

For indoor applications only.


FEATURES

Twelve 2.25" (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control

Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections

145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration

Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement

Optional brackets allow easy installation of single-, double- or triple-stack line array modules

Applications

  • Houses of worship
  • Multi-purpose spaces
  • Recreation
  • Restaurants and bars
  • Auditoriums
  • Transportation facilities
  • Gymnasiums
  • Atriums and malls

SPECS

Technical Summary

Frequency Response (+/-3 dB)
155 Hz - 12 kHz

Frequency Range (-10 dB)
100 Hz - 16 kHz

Nominal Dispersion
145° H x 20° V

Long-Term Power Handling
300 W (1200 W peak)

Sensitivity (SPL / 1 W @ 1 m)
88 dB SPL

Maximum SPL @ 1 m
113 dB SPL (119 dB SPL peak)

Nominal Impedance
8 Ω

Mechanical Diagrams

Front View

Top View

Side View

57835

Fiche technique

Type de produit

Références spécifiques

UPC
57835
EAN-13
0017817392297
