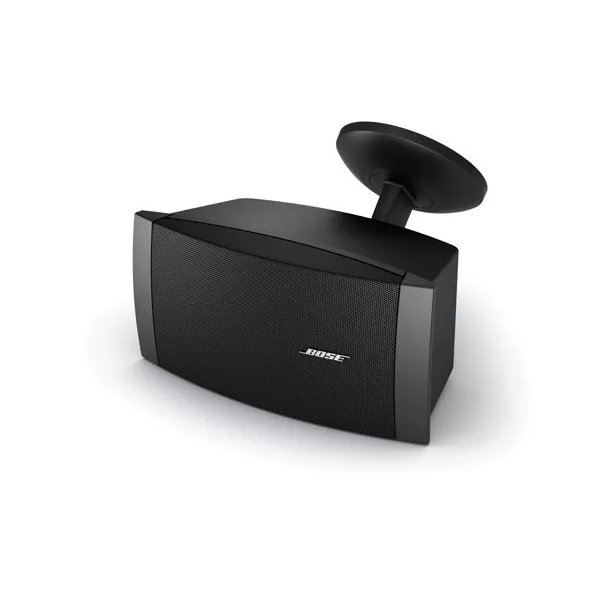

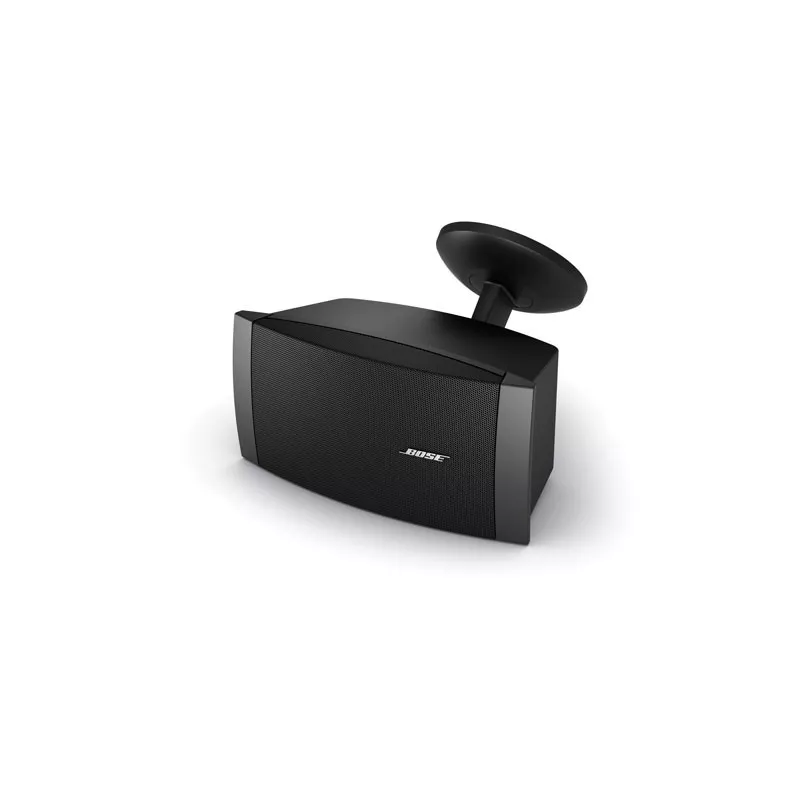

Bose Pro FREESPACE DS 40SE
- Donnez votre avis
355,00 CHF
TTC
Stock fournisseur - habituellement 5 à 7 jours
Versatile, high-performance, full-range, surface-mount loudspeaker designed for foreground and background music and speech reproduction in a wide range of installed applications. High output and 125° x 125° coverage pattern with a frequency range down to 70 Hz.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Versatile, high-performance, full-range, surface-mount loudspeaker designed for foreground and background music and speech reproduction in a wide range of installed applications. High output and 125° x 125° coverage pattern with a frequency range down to 70 Hz.
For indoor and outdoor applications.
EN 54-24 compliant DS loudspeaker models are also available for use in Voice Alarm (VA) systems. Please contact your local Bose team for availability information.
FEATURES
Full-range loudspeaker with a single 4.5" (114 mm) full-range driver in a ported enclosure designed for surface mounting in foreground and background music and paging applications
Simple 1->2->3 installation system. Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw
Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap settings from under front end cap
Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40, and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
Supported by a suite of accessories, including wall-mount bracket, ceiling-mount bracket, pole-mount bracket and junction boxes
Applications
- Retail stores
- Restaurants and bars
- Concourse
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
SPECS
Technical Summary
Frequency Response (+/-3 dB)
80 Hz - 17 kHz
Frequency Range (-10 dB)
70 Hz - 19 kHz
Nominal Dispersion
125° H x 125° V
Long-Term Power Handling
40 W (160 W peak)
Sensitivity (SPL / 1 W @ 1 m)
87 dB SPL
Maximum SPL @ 1 m
103 dB SPL (109 dB SPL peak)
Nominal Impedance
8 Ω (transformer bypassed)
Mechanical Diagrams
Front View
Top View
Side View
57727
Fiche technique
- Type de produit
- Enceinte encastrable
Références spécifiques
- UPC
- 57727
- EAN-13
- 0017817535410
