ECP 2

2 390,00 CHF
TTC Stock fournisseur - habituellement 5 à 7 jours

Préampli phono deuxième génération, entièrement paramétrable.
Couleur : Noir
Quantité
Add to wishlist
Stock fournisseur

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Phono section
Gain @ 1 kHz RCA Adjustable 39,8 – 71,4 dB
Gain @ 1 kHz XLR Adjustable 45,8 – 76,4 dB
Resistance loading (RL) Adjustable 10 Ω – 47 kΩ
Capacitive loading (CL) Adjustable 0 – 350 pF
Maximum output level: 17.5 V rms (+ 25 dB V)
Overload margin > 31 dB @ 1 kHz
Output impedance 100 Ω single-ended, 200 Ω balanced
Frequency response 20 – 20 kHz +/- 0.2 dB
RIAA Correction Accuracy
± 0,1 dB
Subsonic filter -3dB @ 11 Hz, 24 dB/octave
Channel separation > 85 dB, 20 – 20 kHz
THD + Noise < 0.003 % @ 1 kHz
S/N-R 96 dB, 1 kHz, A-weighted, ref. 10 dB V output
S/N-R 91 dB, 1 kHz, A-weighted, ref. 5 mV input
S/N-R 67.4 dB, 1 kHz, A-weighted, ref. 500 μV input


Dimensions
Width 465 mm / 18.3 inches
Depth 371 mm / 14.6 inches
Height 78 mm / 3 inches
Weight 9 kg. / 19.8 lbs.

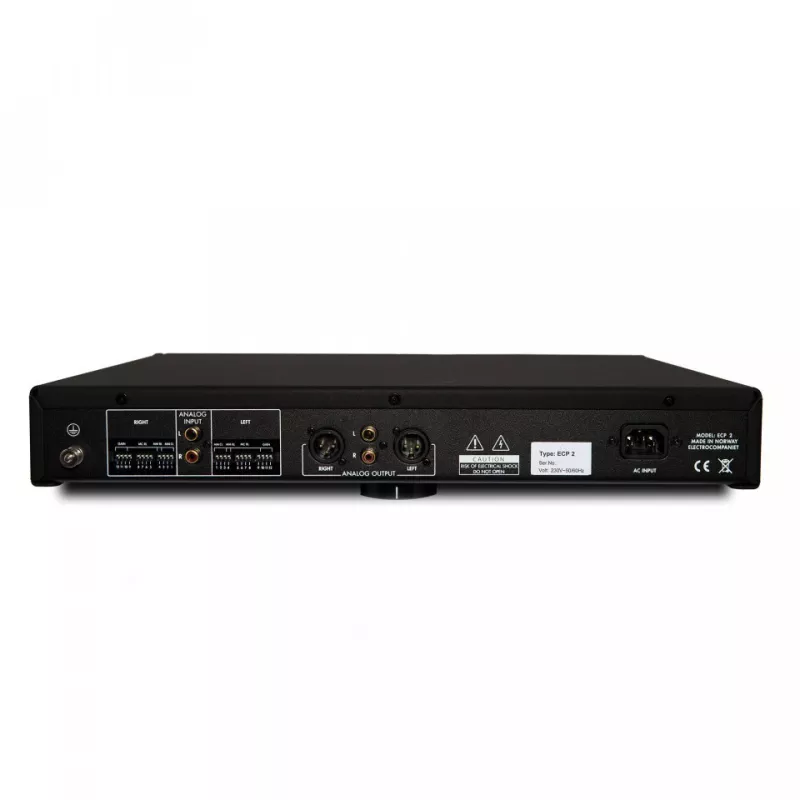

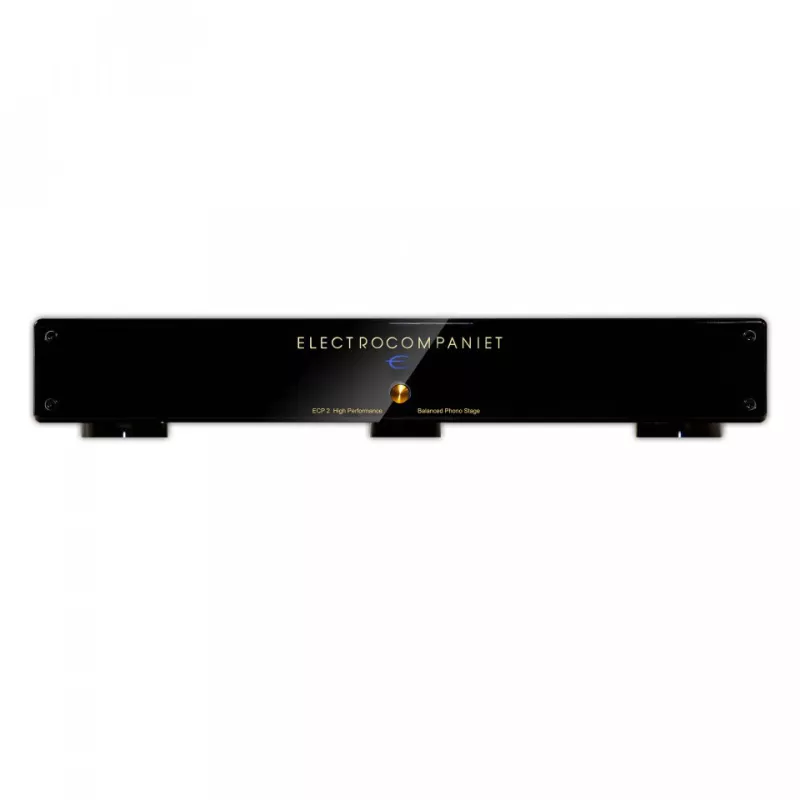

Balanced Phono Stage Preamplifier

The new Electrocompaniet ECP 2 Phono Preamplifier is designed according to guidelines seen in the phono preamplifier from Dynamic Precision. It incorporates state-of-the-art instrumentation operational amplifiers and like other Electrocompaniet products, it uses the highest quality of discrete components through the whole signal path, all DC coupled of course.


The ECP 2 accommodates any imaginable pick-up and cable combination, thanks to it’s highly configurable input stage. User can select best suiting capacitive and resistive load configuration regarding to the pick-up cartridge used as source, no matter whether it is of an MM or MC type. Overall gain is also adjustable in 5 dB steps to accommodate different output levels from different pick-ups. The ECP 2 follows strictly the standard RIAA playback equalization curve, having also steep low frequency roll-off to filter out unwanted signals originating for example from playing back warped records.
